DJI Mic Mini 2S Transmitter (Model: DMMT03)
| Feature / Parameter | Description |
| Dimensions | 28.58×28.04×13.52 mm (L×W×H) |
| Weight | Approx. 12 g (with magnetic front cover, without magnetic clip and magnet) |
| Wireless Mode | GFSK 1 Mbps and 2 Mbps |
| EIRP | < 16 dBm |
| Operating Frequency | 2.400-2.4835 GHz |
| Bluetooth Protocol & Frequency | Bluetooth 6.0; 2.400-2.4835 GHz |
| Bluetooth Transmitter Power | < 16 dBm |
| Maximum Transfer Rate | Approx. 34 MB/s |
| Battery Specs | Li-ion, 124 mAh, 0.484 Wh, 3.91 V |
| Charging & Operation Temp | Charging: 5° to 45° C (41° to 113° F); Operating: -10° to 45° C (14° to 113° F) |
| Charging Time & Battery Life | Charging time: Approx. 70 minutes; Operating time: Approx. 11 hours |
2. DJI Mic Mini 2S Receiver (Model: DMMR03)
| Feature / Parameter | Description |
| Dimensions | 46.50×29.61×19.32 mm (L×W×H) |
| Weight | Approx. 19 g (including the interface cover) |
| Wireless Mode & EIRP | GFSK 2 Mbps; EIRP: < 16 dBm |
| Operating Frequency | 2.400-2.4835 GHz |
| Bluetooth Protocol & Frequency | Bluetooth 6.0; 2.400-2.4835 GHz |
| Bluetooth Transmitter Power | < 16 dBm |
| Battery Specs | Li-ion, 185 mAh, 0.723 Wh, 3.91 V |
| Charging & Operation Temp | Charging: 5° to 45° C (41° to 113° F); Operating: -10° to 45° C (14° to 113° F) |
| Charging Time & Battery Life | Charging time: Approx. 70 minutes; Operating time: Approx. 10 hours |

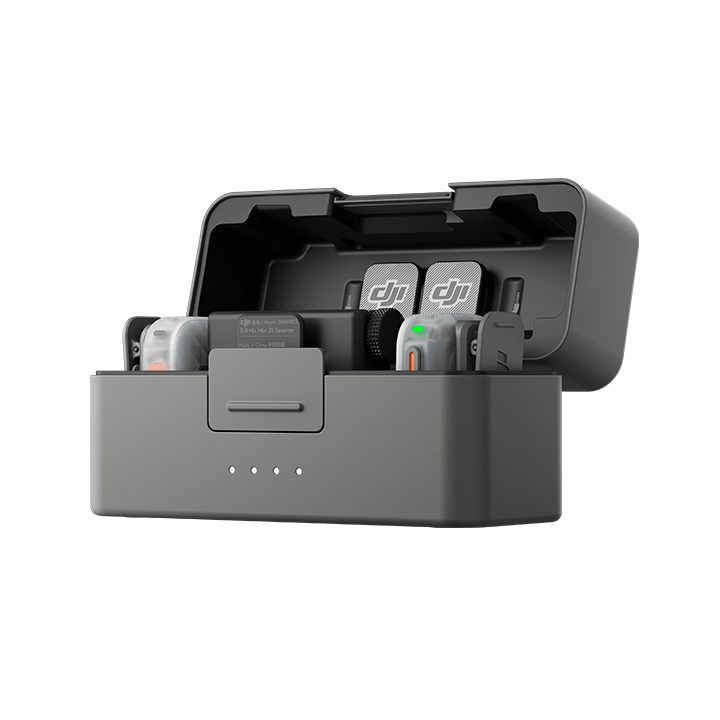

3. DJI Mic Mini 2S Charging Case (Model: DMMC03)
| Feature / Parameter | Description |
| Dimensions & Weight | 106.30×42.50×59.20 mm (L×W×H); Weight: Approx. 160 g (charging case only) |
| Battery Specs | Li-ion, 1950 mAh, 7.55 Wh, 3.87 V |
| Charging Specification | Max 5 V, 3 A |
| Charging & Operation Temp | Charging: 5° to 40° C (41° to 104° F); Operating: -10° to 45° C (14° to 113° F) |
| Charging Time & Cycles | Charging time: Approx. 2 hours; Fully charged case can fully charge two TX and one RX simultaneously approx. 3.2 times |
4. DJI Mic Series Mobile Receiver (Model: DMMR02)
| Feature / Parameter | Description |
| Dimensions & Weight | 39.26×27.26×8.97 mm (L×W×H); Weight: Approx. 6.5 g |
| Wireless Mode & EIRP | GFSK 2 Mbps; EIRP: < 20 dBm |
| Operating Frequency | 2.400-2.4835 GHz |
| Bluetooth Protocol & Frequency | Bluetooth 5.3; 2.400-2.4835 GHz |
| Bluetooth Transmitter Power | < 20 dBm |
| Charging & Operation Temp | Charging: 5° to 45° C (41° to 113° F); Operating: -10° to 45° C (14° to 113° F) |
5. DJI Mic Mini 2 Charging Case (1 TX + 1 Mobile RX) (Model: DMMCS2)
| Feature / Parameter | Description |
| Dimensions & Weight | 78.80×33.07×44.70 mm (L×W×H); Weight: Approx. 71.0 g (charging case only) |
| Battery Specs | Li-ion, 275 mAh, 1.07 Wh, 3.87 V |
| Charging Specification | Max 5 V, 3 A |
| Charging & Operation Temp | Charging: 5° to 40° C (41° to 104° F); Operating: 5° to 45° C (41° to 113° F) |
| Charging Time & Cycles | Charging time: Approx. 1 hour; Fully charged case can fully charge one TX approx. 1.5 times |
6. General Technical Specifications
| Feature / Parameter | Description |
| Polar Pattern | Omnidirectional |
| Frequency Response | Low Cut Off: 20 Hz-20 kHz
Low Cut On: 100 Hz-20 kHz |
| Maximum SPL | 126 dB SPL@1% THD
130 dB SPL@10% THD |
| Equivalent Noise | 22 dBA |
| Monitor Interface Output Power | 20 mW@1 kHz, 32 Ω (for Mobile Receiver) |
| Max Transmission Distance | • 400 m: With Mic Mini 2S Receiver connected.
• 300 m: With Mobile Receiver connected (Green Light mode).
• 200 m: With Mobile Receiver simultaneously connected to two transmitters (Blue Light mode). |
Dji Mic Mini 2S Description

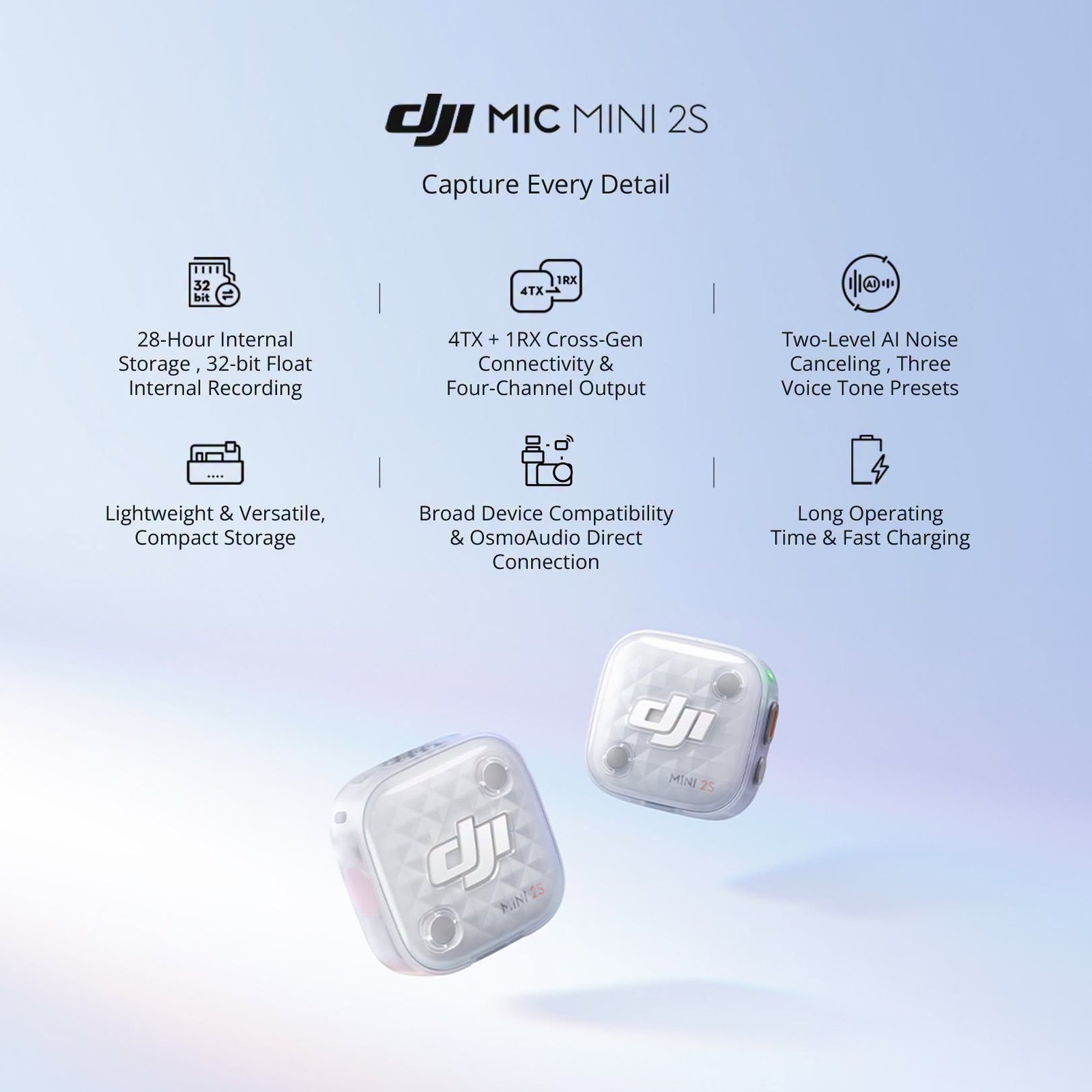

The DJI Mic Mini 2S is an ultra-compact, professional-grade wireless microphone system designed for content creators, vloggers, and filmmakers who demand pristine audio clarity. Weighing a mere 12 grams, the discreet transmitter attaches effortlessly to your apparel without sagging or pulling. Engineered with cutting-edge audio technology, it ensures your voice remains crisp, clear, and rich—whether you are shooting outdoors in windy conditions or recording inside a bustling studio.
Key Features & Highlights What is the battery life of the DJI Mic Mini 2S?
The transmitter delivers approximately 11 hours of operating time, while the receiver offers around 10 hours. Combined with the charging case, the system provides up to 40 hours of total battery backup.
Does the DJI Mic Mini 2S support 32-bit float recording?
Yes, it supports robust 24-bit and high-end 32-bit float internal backup recording with roughly 16 GB of internal storage, protecting your audio against clipping and signal drops.
What is the maximum transmission range?
When paired with the DJI Mic Mini 2S Receiver, it achieves a maximum transmission distance of up to 400 meters in open, unobstructed environments.
What smart noise-canceling features are included?
It features two-level AI noise cancellation and three distinct voice tone presets (Regular, Rich, and Bright) to effectively eliminate background chatter and isolate your voice.
Technical Specifications Overview
Transmitter Model: DMMT03 (Dimensions: 28.58×28.04×13.52 mm; Weight: ~12 g)
Receiver Model: DMMR03 (Dimensions: 46.50×29.61×19.32 mm; Weight: ~19 g)
Connectivity: Bluetooth 6.0 protocol for seamless device pairing and stable wireless transmission.
Acoustic Performance: Omnidirectional polar pattern with frequency responses of 20 Hz–20 kHz (Low Cut Off) and 100 Hz–20 kHz (Low Cut On).
Maximum SPL: 126 dB SPL (@1% THD) and 130 dB SPL (@10% THD).
