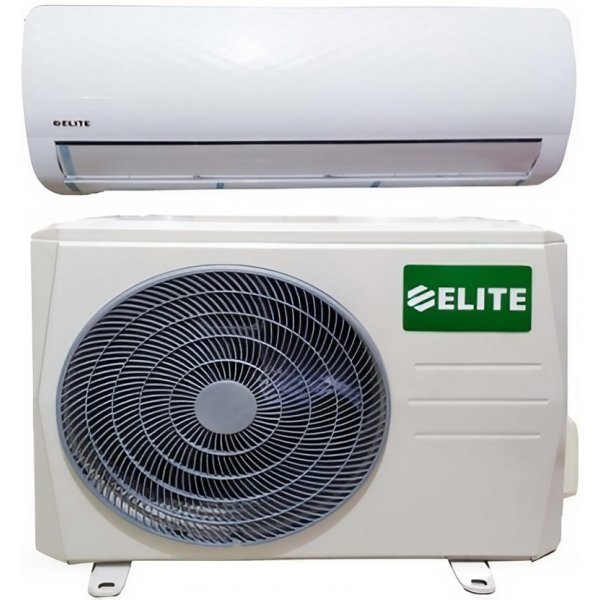

Elite 1 Ton Split Type Non Inverter AC – EHS12CRN
Specifications
| Specification | Details |
|---|---|
| Brand | Elite |
| Model | EHS12CRN |
| Product Type | Split Air Conditioner |
| AC Technology | Non-Inverter |
| Capacity | 1 Ton |
| Cooling Capacity | 12,000 BTU/h |
| Cooling Function | Cooling Only |
| Compressor Type | Rotary |
| Compressor Brand | GMCC/LAMDA |
| Refrigerant Type | R410A |
| Refrigerant Charge | 0.55 kg |
| Power Supply | 220–240V, 1 Phase, 50Hz |
| Standard Input Power | 1,100W |
| Maximum Input Power | 1,400W |
| Standard Current | 4.9A |
| Maximum Current | 7.5A |
| Energy Efficiency Ratio | 3.15 W/W |
| Star Rating | 3 Star |
| Controller | Remote Control |
| Indoor Airflow | 650 / 560 / 510 / 460 m³/h |
| Indoor Noise Level | 43 / 39 / 35 dB |
| Outdoor Noise Level | 50 dB |
| Indoor Unit Dimensions | 822 × 295 × 200 mm |
| Outdoor Unit Dimensions | 860 × 310 × 555 mm |
| Indoor Unit Net Weight | 9.14 kg |
| Outdoor Unit Net Weight | 27 kg |
| Liquid Pipe Size | 1/4 inch |
| Gas Pipe Size | 1/2 inch |
| Operating Temperature | 16°C–32°C |
| Installation Type | Wall-Mounted Split |
Description
Elite 1 Ton Split Type Non Inverter AC – EHS12CRN
Stay comfortable during hot weather with the Elite 1 Ton Split Type Non Inverter AC EHS12CRN. Designed for everyday residential cooling, this wall-mounted air conditioner combines 12,000 BTU/h cooling capacity, a rotary compressor, and practical features for convenient home use.
The Elite EHS12CRN is a cooling-only split AC suitable for bedrooms, small living spaces, and other appropriately sized rooms. Its non-inverter technology offers straightforward operation, while the remote controller makes temperature adjustment easy and convenient.
Powerful 12,000 BTU Cooling
With a rated cooling capacity of 12,000 BTU/h (1 ton), the Elite EHS12CRN is designed to provide comfortable cooling in suitable indoor spaces. Actual cooling performance depends on room size, insulation, sunlight exposure, occupancy, and outdoor temperature.
Reliable Rotary Compressor
The AC features a rotary compressor designed for everyday cooling performance. Its non-inverter operation makes it a practical option for customers looking for a conventional split air conditioner.
Frequently Asked Questions (FAQ)
Q1: What is the cooling capacity of the Elite EHS12CRN AC?
The Elite EHS12CRN has a cooling capacity of 12,000 BTU/h, equivalent to 1 ton.
Q2: Is the Elite EHS12CRN an inverter AC?
No. It is a conventional non-inverter split air conditioner.
Q3: Does the Elite EHS12CRN support heating?
No. This model is designed for cooling-only operation.
Q4: Which refrigerant does the Elite EHS12CRN use?
It uses R410A refrigerant.
Q5: What type of compressor does this AC use?
It uses a rotary compressor. The official product specification lists GMCC/LAMDA as the compressor brand.
Q6: What is the warranty for the Elite EHS12CRN?
The manufacturer’s listed residential warranty is 5 years on the compressor, 2 years on spare parts, and 2 years on service, subject to the applicable warranty terms. Confirm the warranty supplied with your unit before purchase.
