JBL Bar 500 590W 5.1-CH Full Specification
Model | Bar 500 |
---|---|
Brand | JBL |
Material | Faiber Body |
Speaker Usage | Home Theater |
Speaker Type | TV / Sound Bar |
Total Speaker | 5 : 1 Speaker |
Total Power | 590W |
Satellite Speaker | 5.1 Channel |
Subwoofer | Wireless Subwoofer |
Audio Input | Bluetooth |
Frequency | 35 Hz to 20 kHz |
Remote Control | Yes |
Power Source | Corded Electric 100 to 240V AC, 50 / 60Hz |
Battery Capacity | N/A |
Memory Card | N/A |
Microphone | N/A |
Weight | 16.2 Kg |
- Power
- Power supply: 100 – 240V AC, 50 / 60Hz
- Networked standby power: 2.0W
- Operating temperature: 0°C – 45 °C
- Audio
- Total speaker power output: 590W
- Soundbar output power: 290W
- Subwoofer output power: 300W
- Soundbar transducer: 4x, 46 x 90mm racetrack drivers, 3x 0.75″ (20mm) tweeters
- Subwoofer transducer: 260mm
- Frequency response: 35Hz – 20kHz,(-6dB)
- Audio inputs
- 1 x Optical, Bluetooth, USB
- Video
- HDMI video input: 1
- HDMI video output (with Enhanced Audio Return Channel, eARC):1
- HDMI HDCP version: 2.3
- HDR pass-through: HDR10, Dolby Vision
- Control and Connection
- USB port: Type A
- USB rating: 5V DC, 0.5A
- Supporting file format: MP3
- MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate: 16 – 48 kHz
- MP3 bitrate: m80 – 320 kbps
- Bluetooth version: 5.0
- Bluetooth profile: A2DP 1.2, AVRCP 1.5
- Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz
- Bluetooth transmitter power: 15dBm
- Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
- 2.4G Wi-Fi transmitter frequency range: 2412 – 2472 MHz (2.4 GHz ISM
- Band, USA 11 Channels, Europe and others 13 Channels)
- 2.4G Wi-Fi transmitter power: 20dBm
- 5G Wi-Fi transmitter frequency range: 5.15 – 5.35GHz, 5.470-5.725GHz, 5.725 – 5.825GHz
- 5G Wi-Fi transmitter power: 5.15-5.25GHz <23dBm>
- 2.4G wireless transmitter frequency range: 2406 – 2474MH
- 2.4G wireless transmitter power: 10dBm
- Voice Control Using Smart Speakers: Yes
- Package Included
- 1 x Main Soundbar
- 1 x Wireless subwoofer
- Remote control with 2 x batteries
- Power cords (up to 8pcs depending on region SKUs)
- 1 x HDMI cable
- 2 x L-shape wall-mount bracket with screws
- Quick start guide
- Safety Instructions and Warranty Card
- Wall mount template
- Dimension
- Soundbar: 1017 x 56 x 103.5mm
- Subwoofer: 305 x 440.4 x 305mm
- Weight
- Soundbar: 2.8kg
- Subwoofer: 10 kg
- Packaging dimensions: 1105 x 370 x 475mm
- Packaging Weight: 16.2kg

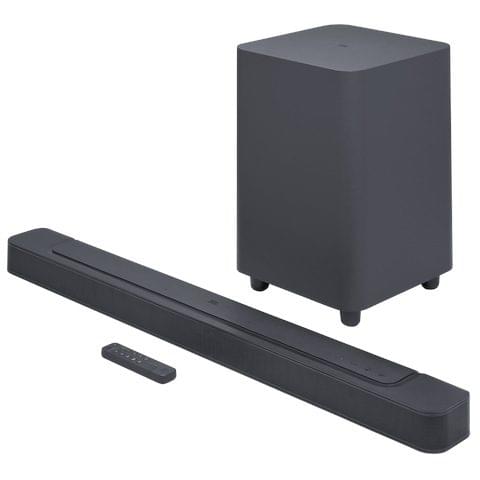

JBL Bar 500 590W 5.1-CH Description
This JBL Bar 500 is a Dolby Atoms soundbar that comes with a 5.1-channel. It offers 590 watts of output power that can transform movies, music, and games into an immersive sound experience.
It supports built-in Wi-Fi with AirPlay, Alexa Multi-Room Music, and Chromecast built-in to access over 300 online music streaming services so,
enjoy your favorite audio content, internet radio, and podcasts in high definition for extra entertainment. Moreover, it supports JPB one app support that helps you to set up the sound bar easily.
- 590W Total Output Power: Provides robust sound that fills your room.
- Dolby Atmos: Offers immersive 3D sound, making movies and music feel more lifelike.
- 5.1-Channel Configuration: Includes a soundbar, subwoofer, and rear speakers (if applicable) for full surround sound.
- Wireless Subwoofer: Deepens the bass without the hassle of wires, adding to the clean and powerful audio.
- Multiple Connectivity Options: Supports HDMI eARC, Optical, Bluetooth, and USB for versatile connections with your devices.
- Easy Setup: User-friendly setup with straightforward installation and controls.
- Voice Control Compatibility: Works with voice assistants like Google Assistant and Alexa for convenient hands-free operation.
