Sony FX3 E Mount Specs
Key Specs
| Lens Mount |
Sony E
|
| Image Sensor |
35.6 x 23.8 mm (Full-Frame) CMOS
|
| Sensor Resolution |
Actual: 12.1 Megapixel
Effective: 10.2 Megapixel |
| Image Stabilization |
Sensor-Shift
|
| ISO/Gain Sensitivity |
Native: 80 to 102,400 (80 to 409,600 Extended)
|
| Internal Recording |
H.265 Long GOP/XAVC HS 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 100/1/120/23.98/12/25/50/4/15/3/2/29.97/8/59.94/6 fps [50 to 280 Mb/s] H.265 Long GOP/XAVC HS 4:2:0 10-Bit 3840 x 2160 at 100/1/120/23.98/12/25/50/4/15/3/2/29.97/8/59.94/6 fps [30 to 150 Mb/s] MPEG-4 AVC/XAVC S-I 4:2:2 10-Bit 4096 x 2160 at 23.98/12/1/24.00/48.00/3/2/29.97/59.94/6 fps UHD 4K (3840 x 2160) at 100/1/120/23.98/12/25/4/15/3/2/29.97/8/59.94/6 fps [240 to 600 Mb/s] 1920 x 1080p at 100/1/120/23.98/12/25/50/4/15/3/240/2/200/29.97/8/59.94/6 fps [89 to 222 Mb/s] XAVC Proxy 1920 x 1080 [9 to 16 Mb/s] 1280 x 720 [6 Mb/s] XAVC S/MPEG-4 AVC 4:2:2 10-Bit 3840 x 2160 at 100/1/120/23.98/12/25/50/4/15/3/2/29.97/8/59.94/6 fps [100 to 280 Mb/s] 1920 x 1080p at 100/1/120/23.98/12/25/50/4/15/3/240/2/200/29.97/8/59.94/6 fps [50 Mb/s] XAVC S/MPEG-4 AVC 4:2:0 8-Bit 3840 x 2160 at 100/1/120/23.98/12/25/50/4/15/3/2/29.97/8/59.94/6 fps [60 to 200 Mb/s] 1920 x 1080p at 100/1/120/23.98/12/25/50/4/15/3/240/2/200/29.97/8/59.94/6 fps [16 to 100 Mb/s] |
| Video Output |
Raw 16-Bit via HDMI
4264 x 2408 at 23.98/50/25/59.94 fps 3840 x 2160 at 23.98/50/25/59.94 fps 1920 x 1080p at 23.98/50/25/59.94 fps 1920 x 1080i at 50/59.94 fps |
| Media/Memory Card Slot |
Dual Slot: CFexpress Type A / SDXC
|
| Video I/O |
1x HDMI Input
|
| Mobile App Compatible |
Yes: Android & iOS
|
| Battery |
NP-FZ100
|
Imaging
| Lens Mount |
Sony E
|
| Lens Communication |
Yes: with Autofocus Support
|
| Image Sensor |
35.6 x 23.8 mm (Full-Frame) CMOS
|
| Sensor Resolution |
Actual: 12.1 Megapixel
Effective: 10.2 Megapixel |
| Image Stabilization |
Sensor-Shift, 5-Axis
|
| Internal Filter Holder |
No
|
| Capture Type |
Stills & Video
|
Exposure Control
| Shutter Type |
Mechanical Focal Plane Shutter and Electronic Rolling Shutter
|
| Shutter Speed |
1/8000 to 1/4 Second
|
| ISO/Gain Sensitivity |
Native: 80 to 102,400 (80 to 409,600 Extended)
|
| Advertised Dynamic Range |
15 Stops
|
| White Balance |
Range: 2500 to 9900K
Presets: Shade, Cloudy, Flash, Incandescent, Underwater, Fluorescent, Auto, Daylight |
Focus
| Focus Mode |
Direct Manual Focus, Continuous-Servo AF, Automatic, Manual Focus
|
| Autofocus Points |
Phase Detection: 627
|
Video Capture
| Internal Recording |
H.265 Long GOP/XAVC HS 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 100/1/120/23.98/12/25/50/4/15/3/2/29.97/8/59.94/6 fps [50 to 280 Mb/s] H.265 Long GOP/XAVC HS 4:2:0 10-Bit 3840 x 2160 at 100/1/120/23.98/12/25/50/4/15/3/2/29.97/8/59.94/6 fps [30 to 150 Mb/s] MPEG-4 AVC/XAVC S-I 4:2:2 10-Bit 4096 x 2160 at 23.98/12/1/24.00/48.00/3/2/29.97/59.94/6 fps UHD 4K (3840 x 2160) at 100/1/120/23.98/12/25/4/15/3/2/29.97/8/59.94/6 fps [240 to 600 Mb/s] 1920 x 1080p at 100/1/120/23.98/12/25/50/4/15/3/240/2/200/29.97/8/59.94/6 fps [89 to 222 Mb/s] XAVC Proxy 1920 x 1080 [9 to 16 Mb/s] 1280 x 720 [6 Mb/s] XAVC S/MPEG-4 AVC 4:2:2 10-Bit 3840 x 2160 at 100/1/120/23.98/12/25/50/4/15/3/2/29.97/8/59.94/6 fps [100 to 280 Mb/s] 1920 x 1080p at 100/1/120/23.98/12/25/50/4/15/3/240/2/200/29.97/8/59.94/6 fps [50 Mb/s] XAVC S/MPEG-4 AVC 4:2:0 8-Bit 3840 x 2160 at 100/1/120/23.98/12/25/50/4/15/3/2/29.97/8/59.94/6 fps [60 to 200 Mb/s] 1920 x 1080p at 100/1/120/23.98/12/25/50/4/15/3/240/2/200/29.97/8/59.94/6 fps [16 to 100 Mb/s] |
| Video Output |
Raw 16-Bit via HDMI
4264 x 2408 at 23.98/50/25/59.94 fps 3840 x 2160 at 23.98/50/25/59.94 fps 1920 x 1080p at 23.98/50/25/59.94 fps 1920 x 1080i at 50/59.94 fps |
| Fast-/Slow-Motion Support |
Yes
|
| Gamma Curve |
Sony S-Log 3, Sony S-Log 2, HDR-HLG, S Cinetone, Standard
|
| Built-In Microphone |
Stereo
|
| Audio Recording |
4-Channel, 24-Bit via LPCM Audio
2-Channel, 24-Bit via LPCM Audio |
Interface
| Media/Memory Card Slot |
Dual Slot: CFexpress Type A / SDXC
|
| Internal Storage |
No
|
| Video I/O |
1x HDMI Input
|
| Audio I/O |
1x 1/8″ / 3.5 mm TRS Stereo Microphone Input
1x 1/8″ / 3.5 mm TRS Stereo Headphone Output |
| Power I/O |
1x USB-C Input
|
| Other I/O |
1x Micro-USB
|
| Wireless |
Wi-Fi 5 (802.11ac) / Bluetooth
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Creators’ App |
| Global Positioning (GPS, GLONASS, etc.) |
No
|
Monitor
| Display Type |
Primary Monitor: 180° Tilting 3″ Touchscreen LCD
|
Viewfinder
| Type |
Optional, Not Included
|
Power
| Battery |
NP-FZ100
|
| Power Consumption |
7.3 W
|
Environmental
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
General
| Shoe Mount |
1x Intelligent Hot Shoe
|
| Tripod Mount |
1/4″-20 Female
|
| Accessory Mounting Thread |
5x 1/4″-20 on Camera Body
3x 1/4″-20 on Included Handle |
| Netflix Approved |
Yes
|
| Materials |
Magnesium Alloy
|
| Dimensions (W x H x D) |
5.1 x 3.3 x 3.1″ / 129.7 x 84.5 x 77.8 mm
|
| Weight |
1.4 lb / 640 g (Body Only)
1.6 lb / 715 g (With Recording Media, Battery) |
Packaging Info
| Package Weight |
3.665 lb
|
| Box Dimensions (LxWxH) |
9.6 x 9 x 5.9″
|

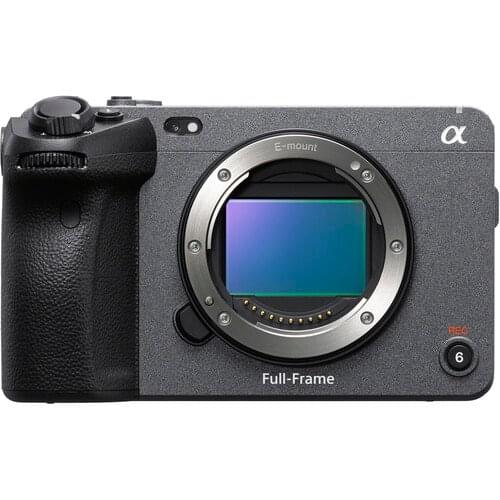

Sony FX3 A E Mount Overview
Cinematic Capture in a Compact, Streamlined Form
With a compact design for solo shooters, travel applications, or as an ideal B camera, the Sony FX3A borrows from both the Cinema Line and Alpha series of cameras to create an optimized portable cinema camera. The FX3A features all the imaging attributes you’d expect from this class but sports a new lightweight, handheld form with a streamlined profile and a “cage-free” design, offering the ability to secure various accessories directly to the camera body.
The Sony Fx3 A Camera is a compact, full-frame cinema camera designed to bridge the gap between Sony’s professional Cinema Line (like the FX6) and its mirrorless Alpha series (like the a7S III), making it ideal for solo shooters, travel, and B-camera work.
Key Features and Specifications:
- Sony Fx3 A Camera Cinematic Image Quality:
- Sensor: 12.1MP Full-Frame Exmor R BSI CMOS sensor (10.2MP effective in video) and BIONZ XR processor.
- Resolution/Frame Rate: UHD 4K up to 120p and 1080p up to 240p.
- Dynamic Range: 15+ stops for exceptional detail in mixed lighting.
- Sensitivity: Expanded ISO 80–409,600 for superior low-light performance.
- Color Science: Features S-Cinetone (for natural skin tones, matching VENICE/FX9/FX6), S-Log3/2, and HLG HDR.
- Recording: Internal 10-bit 4:2:2 recording (All-Intra/Long GOP) and 16-bit raw output over HDMI.
- Sony Fx3 A Camera Design & Ergonomics:
- Form Factor: Lightweight, handheld, and “cage-free” design with multiple 1/4″–20 accessory mounting points directly on the body.
- Cooling: Internal fan and heatsink enable uninterrupted 4K60 recording.
- Stabilization: 5-axis In-Body Image Stabilization (IBIS) with Active Mode, plus Catalyst software stabilization.
- Audio: Includes a detachable XLR adapter handle with two XLR/1/4″ TRS combo inputs for professional 4-channel, 24-bit audio.
- Display: 3.0″ Tilting Touchscreen LCD (2.35MP resolution).
- Sony Fx3 A Camera Performance & Operation:
- Autofocus: Fast Hybrid AF with 627 points, featuring Real-time Tracking and Eye AF for solo shooting ease.
- Media: Dual slots compatible with both CFexpress Type A and SDXC cards (for relay or backup recording).
- Power: USB-PD power option for extended shooting.
- Monitoring: Tally lights on the front, rear, and top clearly indicate recording status.
