JBL Bar 1000 Specs
Key Specs
Channel Configuration |
7.1.4-Channel
|
Low-Frequency Drivers |
5x 1.8 x 3.5″ / 46 x 90 mm Oval Cone
|
High-Frequency Drivers |
3x 0.75″ / 1.91 cm
|
Full-Range Drivers |
2x 2.75″ / 6.99 cm Up-Firing
|
Amplifier Output |
440 W RMS
|
Satellite Speaker Configuration |
2-Way
|
Subwoofer Driver |
1x 10″ / 25.4 cm
|
Subwoofer Amplifier Output |
300 W RMS
|
Inputs |
1x HDMI – eARC
2x HDMI 1x Optical TOSLINK – Audio |
Wireless |
Wi-Fi 6 (802.11ax) / Bluetooth 5.0
|
Audio Decoding |
DTS:X, Dolby Atmos
|
HDMI Compliance |
eARC
|
Wall Mountable |
Yes, with Included Hardware
|
Soundbar
Channel Configuration |
7.1.4-Channel
|
Low-Frequency Drivers |
5x 1.8 x 3.5″ / 46 x 90 mm Oval Cone
|
High-Frequency Drivers |
3x 0.75″ / 1.91 cm
|
Full-Range Drivers |
2x 2.75″ / 6.99 cm Up-Firing
|
Amplifier Output |
440 W RMS
|
Frequency Response |
33 Hz to 20 kHz
|
Total Harmonic Distortion (THD) |
1%
|
Satellite Speakers
Speaker Positioning |
Rear
|
Satellite Speaker Configuration |
2-Way
|
High-Frequency Drivers |
1x 0.75″ / 1.91 cm
|
Full-Range Drivers |
1x 2.75″ / 6.99 cm Up-Firing per Speaker
|
Power Rating |
70 W RMS per Speaker
|
Total Harmonic Distortion (THD) |
1%
|
Placement & Mounting Options |
Wall-Mount (with Included Hardware)
|

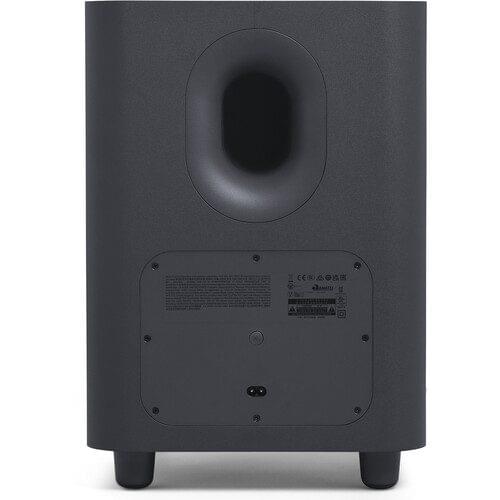

Subwoofer
Subwoofer Driver |
1x 10″ / 25.4 cm
|
Subwoofer Amplifier Output |
300 W RMS
|
Total Harmonic Distortion (THD) |
1%
|
Connectivity
Inputs |
1x HDMI – eARC
2x HDMI 1x Optical TOSLINK – Audio |
USB I/O |
1x USB-A (Unspecified Interface)
|
Wireless Audio Protocols |
AirPlay, Bluetooth, Chromecast built-in, Wi-Fi
|
Wireless |
Wi-Fi 6 (802.11ax) / Bluetooth 5.0
|
Bluetooth |
5.0
|
Bluetooth Profiles |
A2DP 1.2, AVRCP 1.5
|
Mobile App Compatible |
Yes: Android & iOS
Functionality: Adjust Settings, Setup |
Compatibility
Audio Decoding |
DTS:X, Dolby Atmos
|
HDMI Compliance |
eARC
|
HDR Support |
Yes, HDR10/Dolby Vision
|
HDCP Support |
Yes, Version 2.3
|
Supported File Formats |
MP3
|
Power
Power Consumption |
< 2.0 W (Network Standby)
|
Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Environmental
Operating Temperature |
32 to 113°F / 0 to 45°C
|
Physical
Wall Mountable |
Yes, with Included Hardware
|
Dimensions |
34.8 x 2.2 x 4.9″ / 884 x 56 x 125 mm (Soundbar)
6.1 x 2.2 x 4.9″ / 155 x 56 x 125 mm (Satellites) 12 x 17.3 x 12″ / 305 x 440.4 x 305 mm (Subwoofer) |
Weight |
8.2 lb / 3.7 kg (Soundbar)
3.1 lb / 1.4 kg (Each Satellite) 22 lb / 10 kg (Subwoofer) |
Packaging Info
Package Weight |
42.15 lb
|
Box Dimensions (LxWxH) |
39 x 18.75 x 14.5″
|
Wireless & USB Music Playback
The Bar 1000 system is made for more than TV, movies, and gaming. Connect it to your home network via dual-band Wi-Fi to stream content from hundreds of available services. Play music, podcasts, and internet ratio, with support for AirPlay, Alexa Multi-Room Music (MRM), and Chromecast built-in.
Clear Dialogue with PureVoice
With the Bar 1000, you can leave the subtitles off as JBL’s PureVoice technology uses a unique algorithm to enhance vocal clarity, so you don’t miss a word.
HDMI eARC with 4K Dolby Vision Passthrough
Setting up the Bar 1000 with your system is simplified through the single included HDMI cable when using HDMI eARC. The Bar 1000 supports HDMI eARC and 4K video passthrough with HDR10 and Dolby Vision compatibility for improved contrast.
Play Audio with Your Voice
JBL One App
Download the JBL One app to your compatible mobile device to remotely manage the Bar 1000 and other compatible JBL speakers. You can use the app to easily set up the Bar 1000, customize its EQ, personalize settings, and browse integrated music services.
Custom Sound Calibration
The Bar 1000’s integrated sound calibration feature can adjust the Bar 1000’s output to match the specific design of your room, optimizing the quality of audio playback and surround sound.
Additional Features
- Wall mountable
- Automatic software updates over Wi-Fi
Key Features of the JBL Bar 1000:
- 880W Total Output Power: Provides powerful, room-filling sound.
- 7.1.4-Channel Configuration: Includes the soundbar, detachable surround speakers, and a powerful subwoofer, creating a true surround sound setup.
- Dolby Atmos & DTS
: Delivers immersive 3D sound, with audio coming from all directions, including overhead.
- Detachable Wireless Surround Speakers: Offers the flexibility to place speakers anywhere in the room without the need for extra wires.
- Wireless Subwoofer: Enhances bass performance, delivering deep, resonant lows.
- MultiBeam Technology: JBL’s proprietary technology ensures an expansive soundstage.
- HDMI eARC and 4K Pass-Through: Supports the latest high-definition video and audio standards, making it future-proof.
- Voice Assistant Integration: Compatible with Google Assistant, Alexa, and other voice assistants for hands-free control.
- Bluetooth, Wi-Fi, and AirPlay: Multiple connectivity options for streaming music from various devices.
- Easy Setup and Use: Intuitive controls and straightforward installation.
