Zoom H1nSpecs
Portable Recorder
Form Factor |
Handheld Recorder
|
Primary Use Applications |
Audio-for-Video, Dictation & Transcription, Music Recording
|
Number of Tracks |
2
|
Number of Input Channels |
2
|
Maximum Sampling Rate |
96 kHz / 24-Bit
|

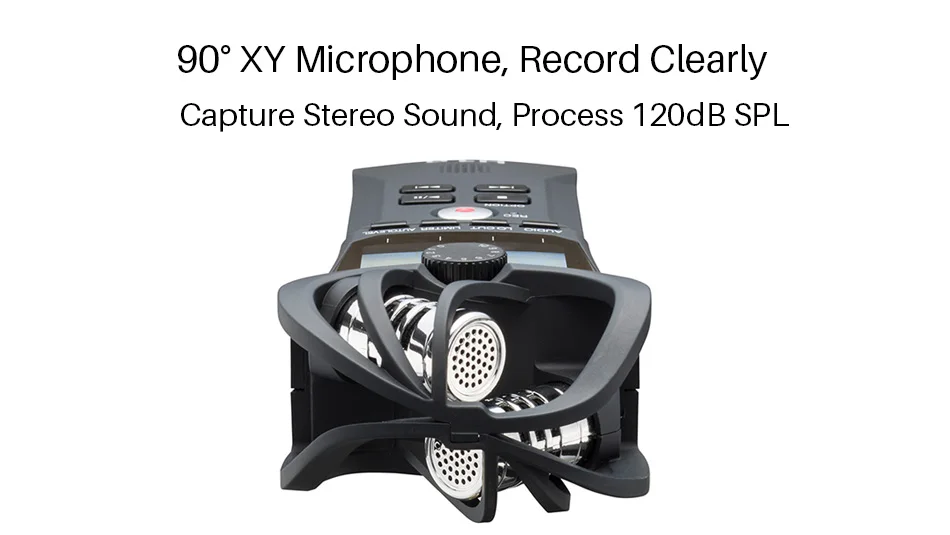

Microphone |
Built-In Cardioid Condenser Stereo Pair, X/Y Configuration
|
Number of Microphone Inputs |
1
|
Built-In Speaker |
Yes, 500 mW Mono
|
Display |
1.25″ / 3.17 cm Monochrome LCD (Backlit)
|
Memory Card Support |
microSD, microSDHC (Up to 32 GB)
|
Internal Storage |
No
|
Special Features |
Overdubbing, Pre-Record Buffer, Slate Function, Voice Activation
|
Recording
Audio File Formats |
BWF, MP3, WAV
|
Sample Rates |
WAV:
44.1 / 48 / 96 kHz |
Bit Depth |
24-Bit (AD/DA Conversion)
32-Bit (Internal DSP) |
Bit Rates |
48 to 320 kb/s
|
Signal Processing & FX |
Auto Gain, Limiter, Low-Cut Filter
|
Timecode Support |
No
|
Recording Time |
WAV 44.1 kHz/16-Bit:
1 Hr 34 Mins per GB (Stereo) WAV 48 kHz/24-Bit: 57.5 Mins per GB (Stereo) WAV 96 kHz/24-Bit: 28.5 Mins per GB (Stereo) MP3 128 kb/s: 17 Hrs 21.5 Mins per GB (Stereo) MP3 256 kb/s: 8 Hrs 40.5 Mins per GB (Stereo) MP3 320 kb/s: 6 Hrs 56.5 Mins per GB (Stereo) |
Included Software |
No
|
Connectivity
Analog I/O |
1x 1/8″ / 3.5 mm TRS Female Unbalanced Line/Mic Input
1x 1/8″ / 3.5 mm TRS Female Unbalanced Headphone/Line Output |
Digital I/O |
No
|
Phantom Power |
No
|
Plug-In Power |
Yes, 2.5 V
|
System Connection |
1x Micro-USB (2.0)
|
Audio Interface Capability |
Stereo Only
|
Wireless |
No
|
Mobile App Compatible |
No
|
Performance
Gain/Trim Range |
X/Y Mic Capsule:
Up to +39 dB Mic/Line Inputs: Up to +39 dB |
Headphone Output Power |
20 mW per Channel into 32 Ohms
|
Impedance |
Mic/Line Inputs:
≥2 Kilohms Line Outputs: ≥10 Kilohms |
Microphone Max SPL |
120 dB SPL
|
Power
Power Options |
Battery
|
Battery Type |
2x AAA
|
Approximate Battery Life |
WAV 44.1 kHz/16-Bit:
10 Hours (Alkaline, 2 Channels) |
AC/DC Power Adapter |
5 VDC at 1 A (Not Included)
|
Physical
Included Accessories |
No
|
Mounting Options |
1/4″-20 Female
|
Dimensions |
2 x 1.3 x 5.4″ / 50 x 32 x 137.5 mm
|
Weight |
2.1 oz / 60 g
|
Packaging Info
Package Weight |
0.55 lb
|
Box Dimensions (LxWxH) |
8.6 x 4.3 x 1.7″
|
New version ZOOM H1N ,we have black color in stock,large quantity,highly recommend.

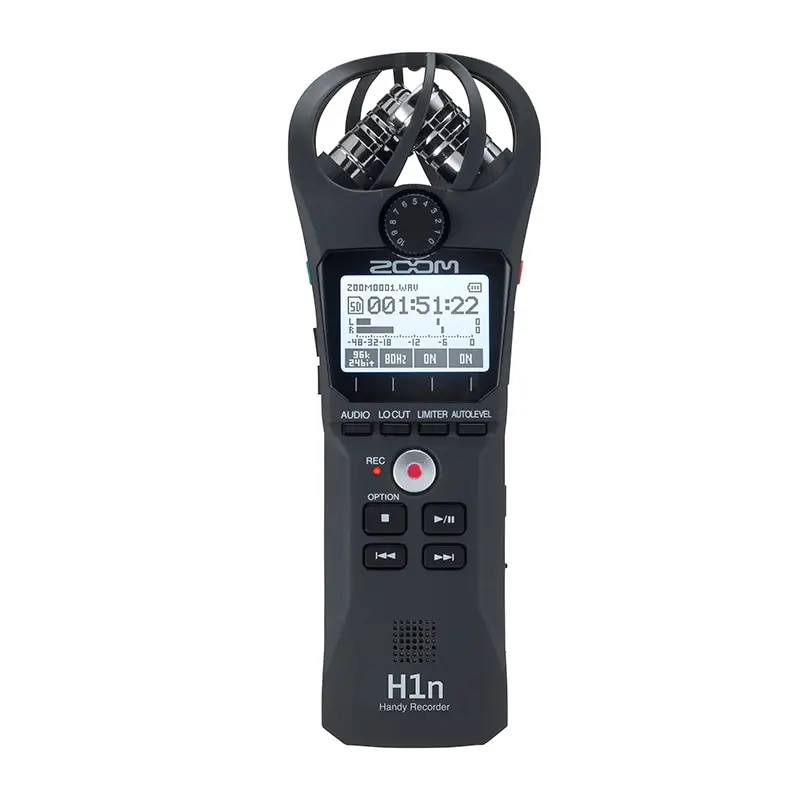

Zoom H1n Digital Handy Recorder
